Brushless DC motor controller IC, DFN package, designed for surface mount applications. Features a parallel interface and operates from a 2.5V to 5.5V supply voltage. Delivers up to 500mA output current with a maximum operating temperature of 150°C. This lead-free, RoHS compliant component is supplied in cut tape packaging.
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A3910EEETR-T technical specifications.
General
| Package/Case | DFN |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Output Current | 500mA |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A3910EEETR-T Datasheet
Download the complete datasheet for Allegro Microsystems A3910EEETR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

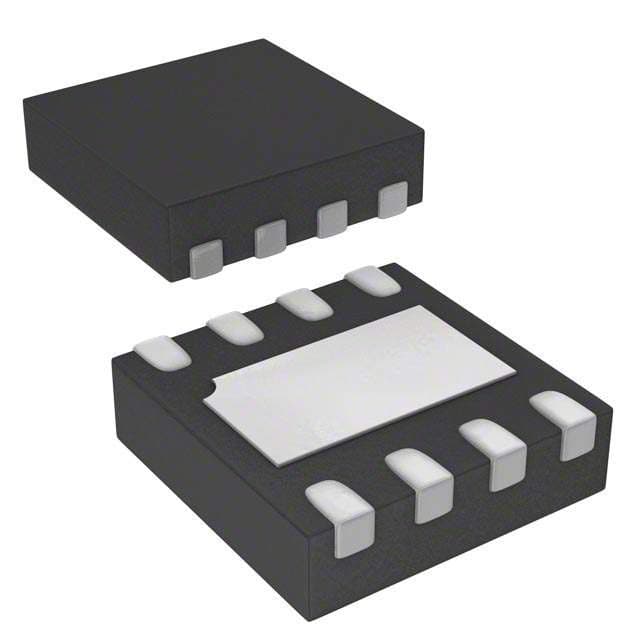

Product Images
