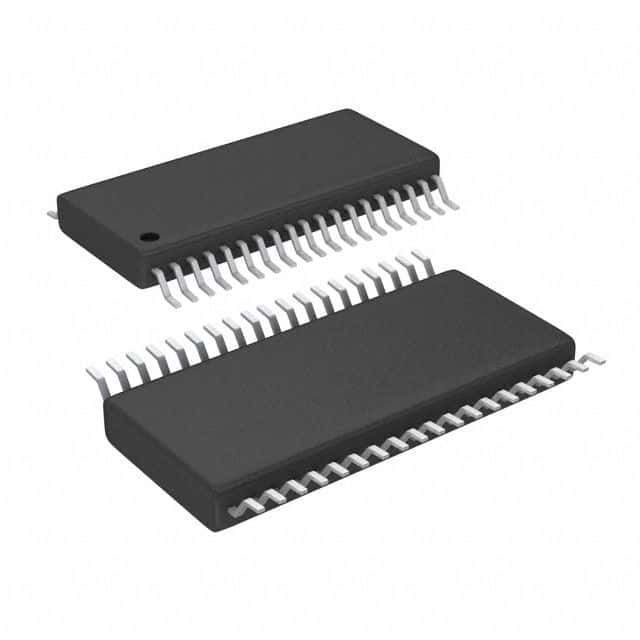

Quad peripheral driver IC featuring buffer/inverter functionality. Operates from a 4.5V to 60V supply range with a maximum output current of 25mA. Supports SPI and parallel interfaces, housed in a 38-pin TSSOP surface-mount package. Designed with NMOS technology, offering a wide operating temperature range from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems A3942KLGTR-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSSOP |
| Interface | SPI, Parallel |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Technology | NMOS |
| Turn-On Delay Time | 22300ns |
| RoHS | Compliant |
