Allegro Microsystems
A3983SLPTR-T
Stepper Motor Controller, 2A, NMOS, PDSO24, 1.20 MM HEIGHT, LEAD FREE, MO-153ADT, TSSOP-24
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A3983SLPTR-T technical specifications.
General
| Package/Case | TSSOP |
| Height | 1.05mm |
| Interface | Logic |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Collector Current | 2A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 20mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Motor Type | Stepper |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Voltage | 35V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Technology | DMOS |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A3983SLPTR-T Datasheet
Download the complete datasheet for Allegro Microsystems A3983SLPTR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

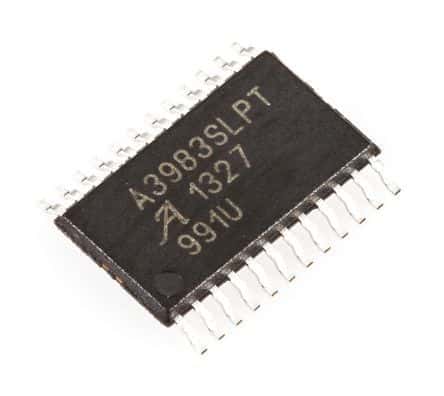

Product Images
