Stepper motor controller IC featuring DMOS technology, capable of delivering up to 2A output current with a 35V output voltage. This surface mount component utilizes a TSSOP package and offers a logic interface for control. Operating within a supply voltage range of 3V to 5.5V, it supports a maximum operating temperature of 85°C. The device is RoHS compliant and packaged on tape and reel.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems A4984SLPTR-T technical specifications.
General
| Package/Case | TSSOP |
| Interface | Logic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 20mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 2A |
| Output Voltage | 35V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Technology | DMOS |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems A4984SLPTR-T Datasheet
Download the complete datasheet for Allegro Microsystems A4984SLPTR-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

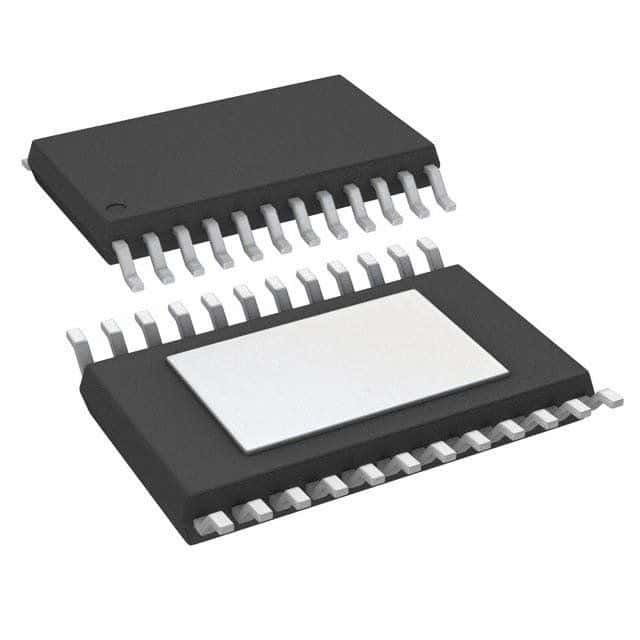

Product Images
