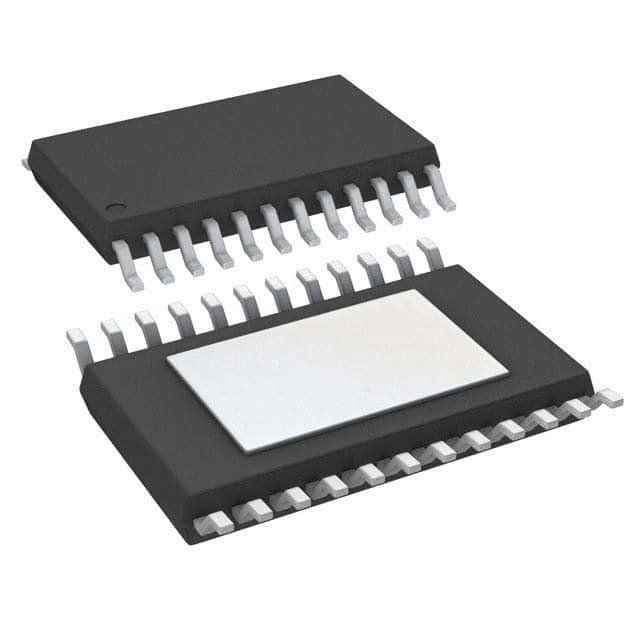

DMOS stepper motor controller featuring a 1A output current and 35V output voltage. This integrated circuit offers logic interface capabilities and operates within a 3V to 5.5V supply voltage range. Designed for surface mounting, it comes in a TSSOP-24 package. The device operates across a temperature range of -20°C to 85°C and is RoHS compliant.
Sign in to ask questions about the Allegro Microsystems A4985SLPTR-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Allegro Microsystems A4985SLPTR-T technical specifications.
| Package/Case | TSSOP |
| Interface | Logic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Motor Type | Stepper |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Voltage | 35V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | DMOS |
| RoHS | Compliant |
