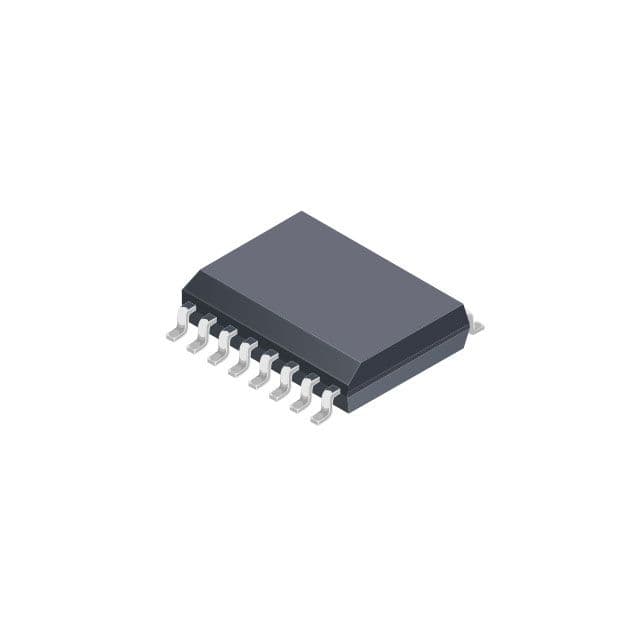

The ACS710KLATR-6BB-NL-T is an analog IC with a single channel current sensing capability of 6A and a frequency response of 120kHz. It is packaged in a SOIC package and is designed for surface mount applications. The device operates over a temperature range of -40°C to 125°C and has a sensitivity of 151mV/A. The IC is RoHS compliant and is available in a package quantity of 1000 units per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems ACS710KLATR-6BB-NL-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1.6% |
| Package/Case | SOIC |
| Current Sensing | 6A |
| Frequency | 120kHz |
| Linearity | 0.25% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 14.5mA |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Supply Current | 11mA |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensitivity | 151mV/A |
| RoHS | Compliant |
Download the complete datasheet for Allegro Microsystems ACS710KLATR-6BB-NL-T to view detailed technical specifications.
