This Hall effect sensor IC offers precise current sensing up to 6A with 2.2% accuracy and 0.25% linearity. Featuring a 120kHz bandwidth and 4µs response time, it operates from a 3V to 3.6V supply, consuming a maximum of 11mA quiescent current. The device is housed in a surface-mount SOIC package, suitable for applications requiring a single-channel, linear Hall effect sensing solution.
Frequency120kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Allegro Microsystems ACS716KLATR-6BB-T technical specifications.
General
Accuracy
2.2%
Bandwidth
120kHz
Package/Case
SOIC
Current Sensing
6A
Frequency
120kHz
Linearity
0.25%
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
11mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Channels
1
Operating Supply Voltage
3.3V
Output Current
3mA
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
9mA
Reach SVHC Compliant
No
Response Time
4us
RoHS Compliant
Yes
Sensitivity
100mV/A
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems ACS716KLATR-6BB-T Datasheet
Download the complete datasheet for Allegro Microsystems ACS716KLATR-6BB-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

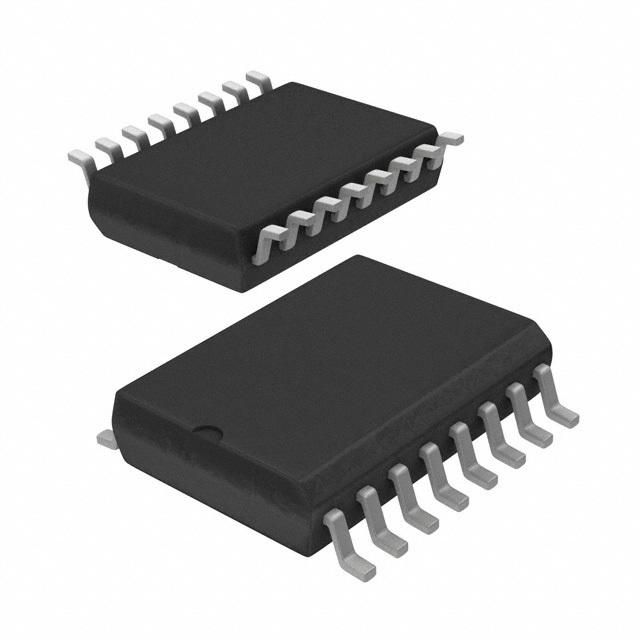

Product Images
