Open-loop Hall effect current sensor for AC/DC applications, featuring 200A current sensing capability with 1.2% accuracy and 1% linearity. Operates from a 3V to 5.5V supply voltage with a typical 5V operating voltage, and offers a 120kHz bandwidth and 4µs response time. Designed for automotive environments with a 5-pin through-hole mount, this sensor operates between -40°C and 85°C.
Frequency120kHz
MountingThrough Hole
Quick Jump:
Technical Specifications
Allegro Microsystems ACS758ECB-200B-PFF-T technical specifications.
General
Accuracy
1.2%
Bandwidth
120kHz
Current Sensing
200A
Frequency
120kHz
Height
7mm
Length
10mm
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
13.5mA
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Channels
1
Operating Supply Current
10mA
Operating Supply Voltage
5V
Output Current
1mA
Packaging
Rail/Tube
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
4us
RoHS Compliant
Yes
Sensing Method
Hall Effect
Sensitivity
10mV/A
Series
Automotive, AEC-Q100
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Allegro Microsystems ACS758ECB-200B-PFF-T Datasheet
Download the complete datasheet for Allegro Microsystems ACS758ECB-200B-PFF-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

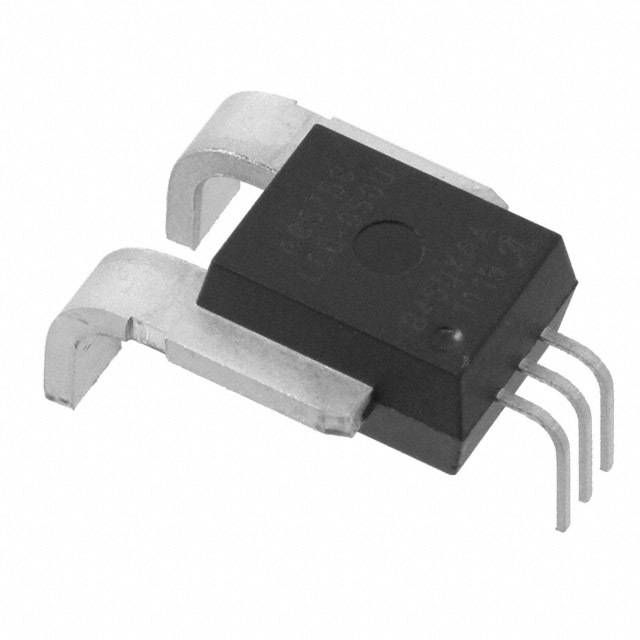

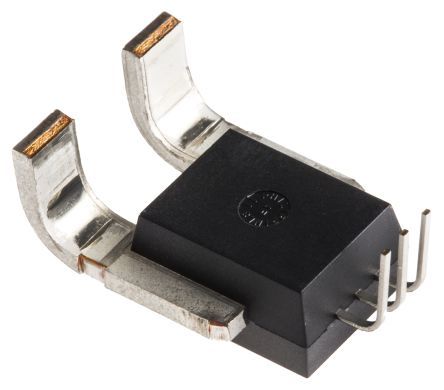

Product Images
