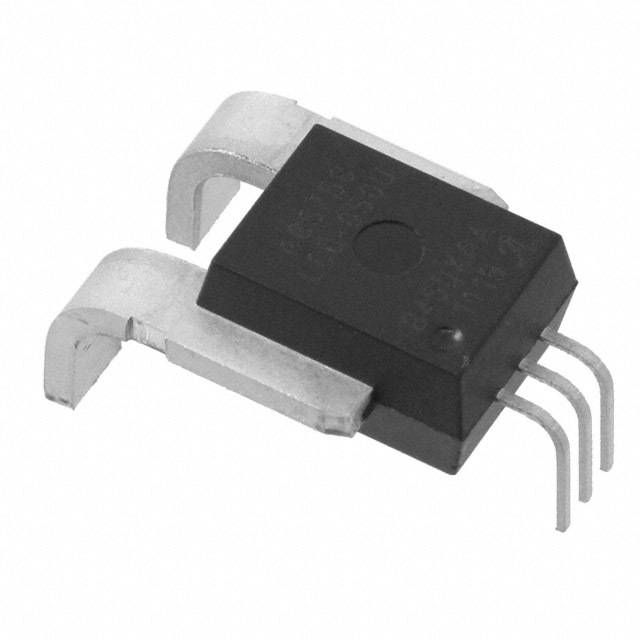

Open loop AC/DC current sensor for automotive applications, featuring 50A current sensing capability with 2% accuracy and 1% linearity. Operates from a 3V to 5.5V supply voltage with a typical 5V operating voltage, offering a 120kHz bandwidth and 4µs response time. This through-hole mount component provides 60mV/A sensitivity and operates across a -40°C to 150°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems ACS758LCB-050U-PFF-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 2% |
| Bandwidth | 120kHz |
| Current Sensing | 50A |
| Frequency | 120kHz |
| Height | 7mm |
| Length | 10mm |
| Linearity | 1% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 13.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Voltage | 5V |
| Output Current | 1mA |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensitivity | 60mV/A |
| Series | Automotive, AEC-Q100 |
| Width | 13mm |
| RoHS | Compliant |
