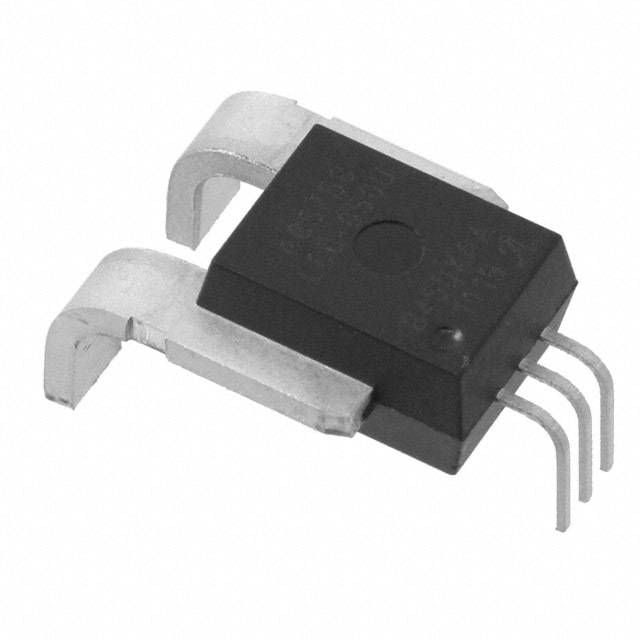

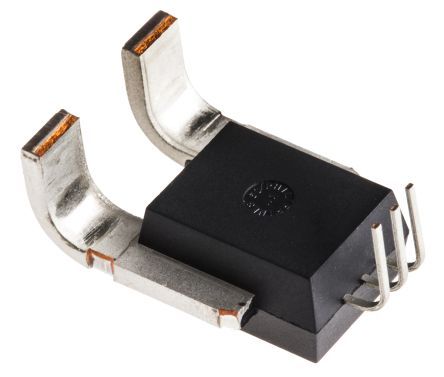

Open loop Hall effect current sensor for AC/DC applications, featuring 100A current sensing capability with 2.4% accuracy and 1.25% linearity. Operates from a 3V to 5.5V supply voltage with a typical 5V operating voltage and 10mA quiescent current. Offers a 120kHz bandwidth and 4µs response time, suitable for automotive environments with a -40°C to 150°C operating temperature range. Through-hole mountable in a 5-pin Case CB-PFF package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems ACS758LCB-100U-PFF-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 2.4% |
| Bandwidth | 120kHz |
| Current Sensing | 100A |
| Frequency | 120kHz |
| Height | 7mm |
| Length | 10mm |
| Linearity | 1.25% |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 13.5mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 1 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 5V |
| Output Current | 1mA |
| Packaging | Rail/Tube |
| Quiescent Current | 10mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensing Method | Hall Effect |
| Sensitivity | 40mV/A |
| Series | Automotive, AEC-Q100 |
| Width | 13mm |
| RoHS | Compliant |
