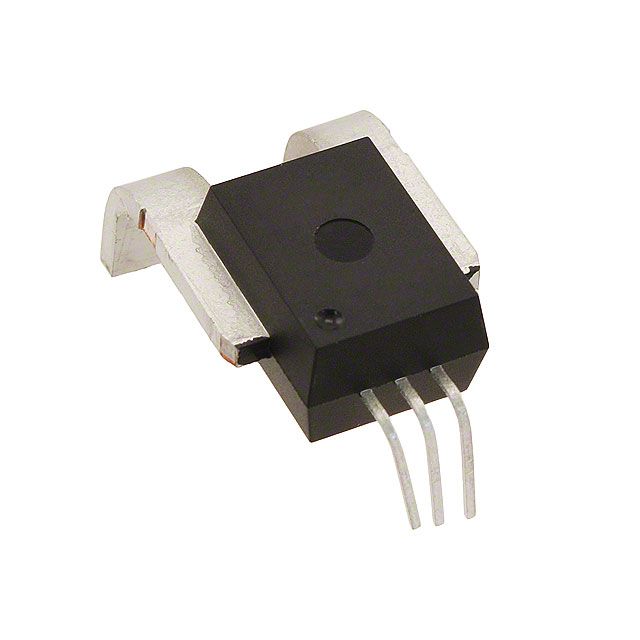

The ACS759KCB-150B-PFF-T from Allegro Microsystems is a single-channel current sensor with an accuracy of 4%. It can sense currents up to 150A and operates within a temperature range of -40 to 125°C. The device has a response time of 4us and a sensitivity of 8.8mV/A. It is RoHS compliant and is available in a through-hole package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Allegro Microsystems ACS759KCB-150B-PFF-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 4% |
| Current Sensing | 150A |
| Frequency | 120kHz |
| Linearity | 1% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 13.5mA |
| Mount | Through Hole |
| Number of Channels | 1 |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensitivity | 8.8mV/A |
| RoHS | Compliant |
