Allegro Microsystems
UDN2916B-T
Stepper Motor Controller, 1A, BIPolar, PDIP24, LEAD FREE, PLASTIC, MS-001BE, DIP-24
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Allegro Microsystems UDN2916B-T technical specifications.
General
| Package/Case | DIP |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Outputs | 4 |
| Output Current | 750mA |
| Output Voltage | 45V |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | BIPOLAR |
Compliance
| RoHS | Compliant |
Datasheet
Allegro Microsystems UDN2916B-T Datasheet
Download the complete datasheet for Allegro Microsystems UDN2916B-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

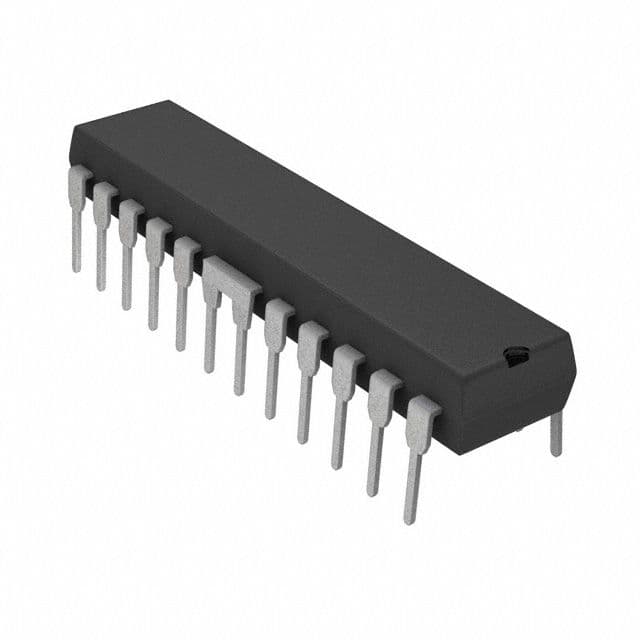

Product Images
