1Mb asynchronous SRAM with 128K x 8 organization, offering a 55ns access time. This CMOS memory features a parallel interface and operates from a 2.7V to 5.5V supply voltage, with a nominal 3V. The component is housed in a 32-pin PDIP package suitable for through-hole mounting. It supports a temperature range of 0°C to 70°C and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Alliance Memory AS6C1008-55PCN technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
17b
Package/Case
PDIP
Density
1Mb
Height
3.81mm
Interface
Parallel
Lead Free
Lead Free
Length
41.91mm
Max Operating Temperature
70°C
Memory Size
1Mb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
0°C
Max Supply Current
60mA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
3V
Package Quantity
13
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
AS6C1008
Supply Voltage-Nom
3V
Temperature Grade
COMMERCIAL
Weight
0.078125oz
Width
13.818mm
Compliance
RoHS
Compliant
Datasheet
Alliance Memory AS6C1008-55PCN Datasheet
Download the complete datasheet for Alliance Memory AS6C1008-55PCN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

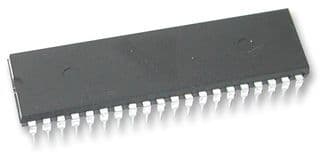

Product Images
