256Kb asynchronous SRAM with a 32K x 8 organization, featuring a 55ns access time. This CMOS memory component operates with a 3.3V nominal supply voltage, ranging from 2.7V to 5.5V, and supports a parallel interface. Packaged in a 28-pin PDIP (DIP-28) for through-hole mounting, it offers a commercial temperature grade from 0°C to 70°C. The component is lead-free and RoHS compliant.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Alliance Memory AS6C62256-55PCN technical specifications.
General
Access Time
55ns
Access Time-Max
55ns
Address Bus Width
15b
Package/Case
PDIP
Density
256Kb
Height
3.81mm
Interface
Parallel
Lead Free
Lead Free
Length
36.32mm
Max Operating Temperature
70°C
Max Supply Voltage
5.5V
Memory Size
256Kb
Memory Type
RAM, , SRAM - Asynchronous, SDR
Min Operating Temperature
0°C
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Ports
1
Number of Words
32000
Operating Supply Voltage
3.3V
Package Quantity
15
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
AS6C62256
Supply Voltage-Nom
3.3V
Temperature Grade
COMMERCIAL
Width
13.21mm
Compliance
RoHS
Compliant
Datasheet
Alliance Memory AS6C62256-55PCN Datasheet
Download the complete datasheet for Alliance Memory AS6C62256-55PCN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

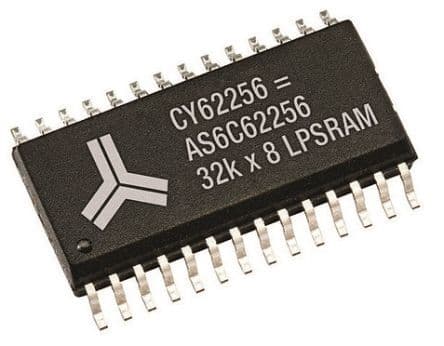

Product Images
