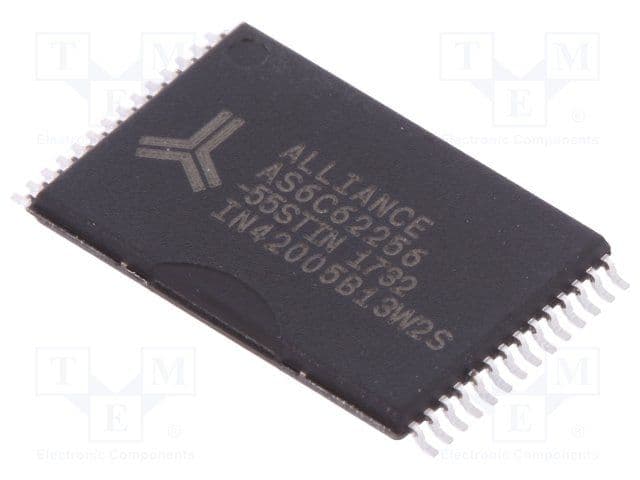

The AS6C62256-55STIN is a 256Kb SRAM asynchronous SDR memory chip with a 15-bit address bus and a 55ns access time. It is packaged in a TSSOP28 package and is designed to operate within a temperature range of -40°C to 85°C. The chip is supplied with a voltage of 3.3V, with a minimum supply voltage of 2.7V and a maximum supply voltage of 5.5V. It is available in a tray packaging with 234 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alliance Memory AS6C62256-55STIN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 55ns |
| Address Bus Width | 15b |
| Package/Case | TSSOP |
| Density | 256Kb |
| Interface | Parallel |
| Max Operating Temperature | 85°C |
| Memory Size | 256Kb |
| Memory Type | RAM, , SRAM - Asynchronous, SDR |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Number of Ports | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 234 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| RoHS | Compliant |
