8Mb CMOS SRAM, 1M x 8 configuration, offering a 55ns access time. This asynchronous, SDR memory features a parallel interface and operates from a 2.7V to 5.5V supply voltage, with a nominal 3V. Packaged in a 44-pin TSOP (0.400 inch) for surface mounting, it supports an industrial temperature range of -40°C to 85°C.
PackageTSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Alliance Memory AS6C8008-55ZIN technical specifications.
General
| Access Time | 55ns |
| Access Time-Max | 55ns |
| Address Bus Width | 20b |
| Package/Case | TSOP |
| Density | 8Mb |
| Height | 1mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Length | 18.42mm |
| Max Operating Temperature | 85°C |
| Memory Size | 8Mb |
| Memory Type | RAM, , SRAM - Asynchronous, SDR |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Ports | 1 |
| Operating Supply Voltage | 3V |
| Package Quantity | 135 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AS6C8008 |
| Supply Voltage-Nom | 3V |
| Temperature Grade | INDUSTRIAL |
| Width | 10.16mm |
Compliance
| RoHS | Compliant |
Datasheet
Alliance Memory AS6C8008-55ZIN Datasheet
Download the complete datasheet for Alliance Memory AS6C8008-55ZIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

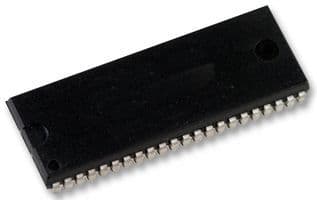

Product Images
