1Mb CMOS SRAM, 128K x 8 organization, offering 12ns access time. This surface mount device features a parallel interface and operates from a 4.5V to 5.5V supply range. Packaged in a 32-pin SOJ with a 0.400 inch body, it is RoHS compliant and rated for industrial temperatures from -40°C to 85°C.
PackageSOJ
MountingSurface Mount
Quick Jump:
Technical Specifications
Alliance Memory AS7C1024C-12JIN technical specifications.
General
Access Time
12ns
Access Time-Max
12ns
Address Bus Width
17b
Package/Case
SOJ
Density
1Mb
Height
2.92mm
Interface
Parallel
Lead Free
Lead Free
Length
21.08mm
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Mb
Memory Type
Volatile, , SRAM, SDR, RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Ports
1
Number of Words
128000
Operating Supply Voltage
5V
Package Quantity
23
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Voltage-Nom
5V
Temperature Grade
INDUSTRIAL
Width
10.29mm
Compliance
RoHS
Compliant
Datasheet
Alliance Memory AS7C1024C-12JIN Datasheet
Download the complete datasheet for Alliance Memory AS7C1024C-12JIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

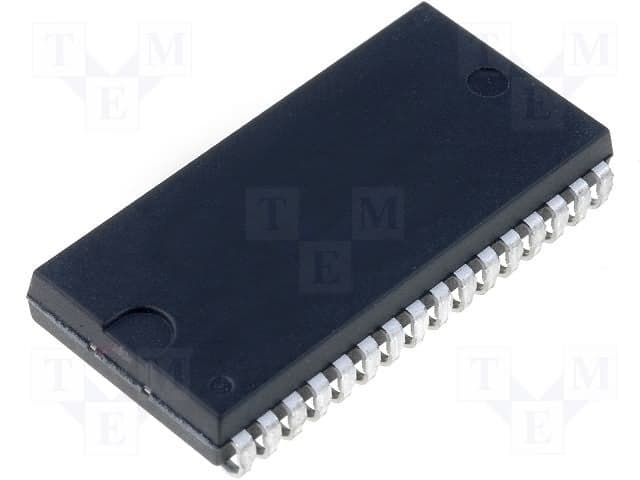

Product Images
