Alliance Memory
AS7C256A-20TIN
Standard SRAM, 32KX8, 20ns, CMOS, PDSO28, 8 X 13.40 MM, LEAD FREE, TSOP1-28
PackageTSOP
Quick Jump:
Technical Specifications
Alliance Memory AS7C256A-20TIN technical specifications.
General
Access Time
20ns
Access Time-Max
20ns
Address Bus Width
15b
Package/Case
TSOP
Density
256Kb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Memory Size
256Kb
Memory Type
SDR, , RAM, SRAM - Asynchronous
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Number of Ports
1
Operating Supply Voltage
5V
Package Quantity
234
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Voltage-Nom
5V
Temperature Grade
INDUSTRIAL
Compliance
RoHS
Compliant
Datasheet
Alliance Memory AS7C256A-20TIN Datasheet
Download the complete datasheet for Alliance Memory AS7C256A-20TIN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

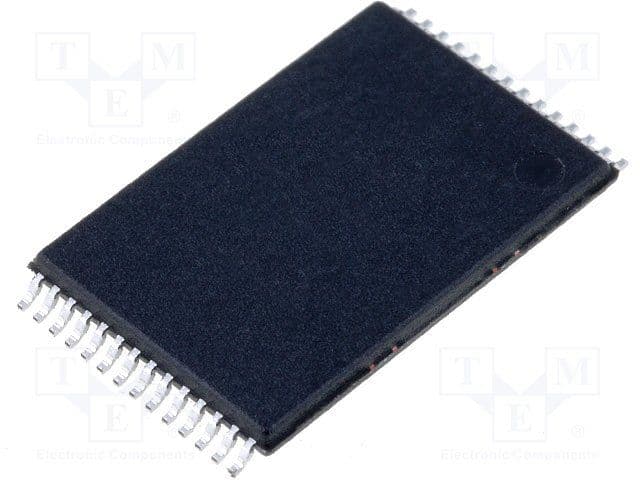

Product Images
