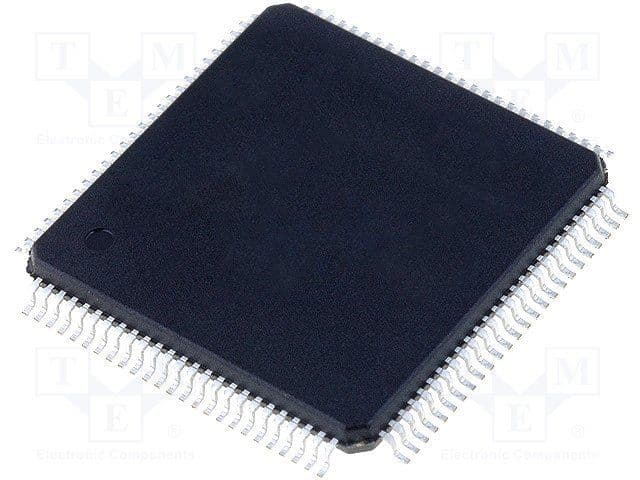

18Mb ZBT SRAM, featuring a 3.5ns access time and 166MHz maximum frequency. This CMOS device offers a 20-bit address bus and a parallel interface. Packaged in a 100-pin TQFP (14x20mm), it operates with a 2.5V supply voltage and is surface mountable. Designed for commercial temperature ranges (0°C to 70°C), this lead-free, RoHS compliant component is a volatile SRAM.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alliance Memory AS8C161831-QC166N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alliance Memory AS8C161831-QC166N technical specifications.
| Access Time | 3.5ns |
| Access Time-Max | 3.2ns |
| Address Bus Width | 20b |
| Package/Case | TQFP |
| Density | 18Mb |
| Frequency | 166MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 166MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2.625V |
| Memory Size | 18Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 2.5V |
| Temperature Grade | COMMERCIAL |
| RoHS | Compliant |
