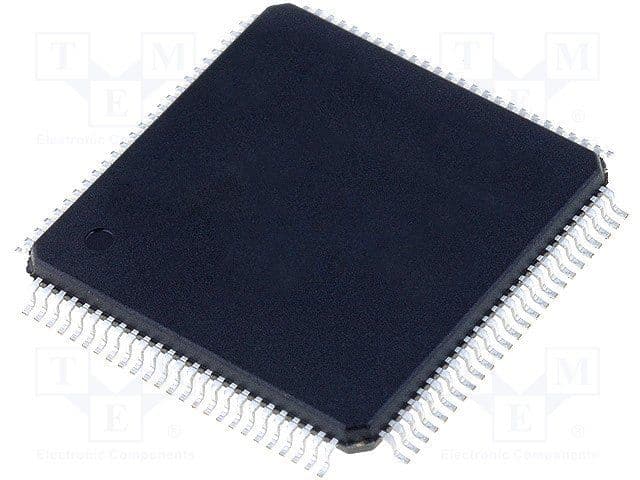

9Mb ZBT SRAM, 512K x 18 configuration, offering a fast 3.8ns access time. This CMOS memory operates at a maximum frequency of 150MHz with a parallel interface. Designed for surface mounting, it features a 100-pin TQFP package and supports a 3.3V operating supply voltage. The component is lead-free and RoHS compliant, suitable for commercial temperature ranges from 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alliance Memory AS8C801801-QC150N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alliance Memory AS8C801801-QC150N technical specifications.
| Access Time | 3.8ns |
| Access Time-Max | 3.8ns |
| Address Bus Width | 19b |
| Package/Case | TQFP |
| Density | 9Mb |
| Frequency | 150MHz |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Frequency | 150MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.4V |
| Memory Size | 9Mb |
| Memory Type | SDR, , Volatile, SRAM |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Ports | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 3.3V |
| Temperature Grade | COMMERCIAL |
| RoHS | Compliant |
Download the complete datasheet for Alliance Memory AS8C801801-QC150N to view detailed technical specifications.
