Technical Specifications

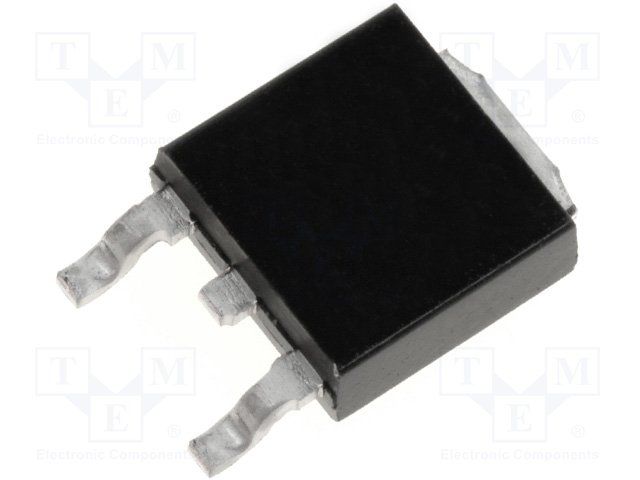

Alpha & Omega AOD2810 technical specifications.
General
Package/Case
TO-252-3
Continuous Drain Current (ID)
46A
Drain to Source Voltage (Vdss)
80V
Input Capacitance
1.871nF
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Mount
Surface Mount
Packaging
Tape and Reel
Rds On Max
8.5mR
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Alpha & Omega AOD2810 Datasheet
Download the complete datasheet for Alpha & Omega AOD2810 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
