The AOD4286 is a 100V N-Channel MOSFET with a continuous drain current of 14A. It features an input capacitance of 390pF and a maximum power dissipation of 30W. The device is packaged in a TO-252-3 surface mount package and is RoHS compliant. It operates over a temperature range of -55°C to 175°C.
PackageTO-252-3
MountingSurface Mount
Quick Jump:
Technical Specifications
Alpha & Omega AOD4286 technical specifications.
General
| Package/Case | TO-252-3 |
| Continuous Drain Current (ID) | 14A |
| Drain to Source Voltage (Vdss) | 100V |
| Input Capacitance | 390pF |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 30W |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Rds On Max | 68mR |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Alpha & Omega AOD4286 Datasheet
Download the complete datasheet for Alpha & Omega AOD4286 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

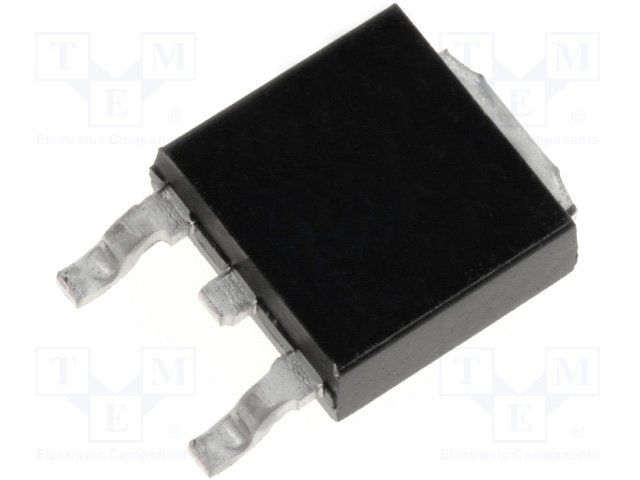

Product Images
