Technical Specifications

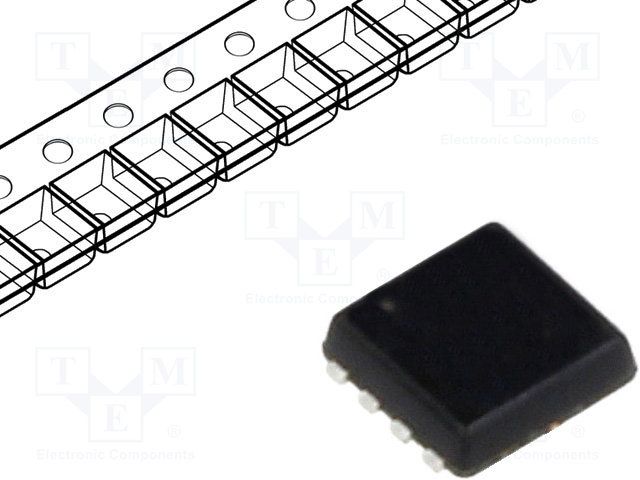

Alpha & Omega AON6934A technical specifications.
General
Package/Case
DFN
Continuous Drain Current (ID)
30A
Drain to Source Voltage (Vdss)
30V
FET Type
2 N-Channel
Input Capacitance
1.037nF
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
4.3W
Mount
Surface Mount
Packaging
Tape and Reel
Rds On Max
5.2mR
RoHS Compliant
Yes
Compliance
RoHS
Not Compliant
Datasheet
Alpha & Omega AON6934A Datasheet
Download the complete datasheet for Alpha & Omega AON6934A to view detailed technical specifications.
