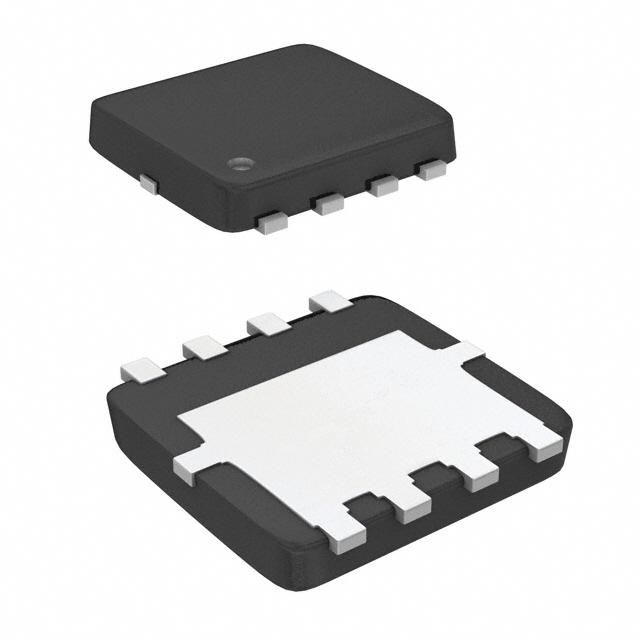

N-channel Power MOSFET, DFN package, offering 30V drain-to-source voltage and 24A continuous drain current. Features low 20mΩ Rds(on) and 660pF input capacitance. Designed for surface mount applications with a maximum power dissipation of 20W and an operating temperature range of -55°C to 150°C. RoHS compliant and supplied in cut tape packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alpha & Omega AON7410 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Alpha & Omega AON7410 technical specifications.
| Package/Case | DFN |
| Continuous Drain Current (ID) | 24A |
| Drain to Source Voltage (Vdss) | 30V |
| Input Capacitance | 660pF |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 20W |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Rds On Max | 20mR |
| RoHS Compliant | Yes |
| RoHS | Compliant |
Download the complete datasheet for Alpha & Omega AON7410 to view detailed technical specifications.
