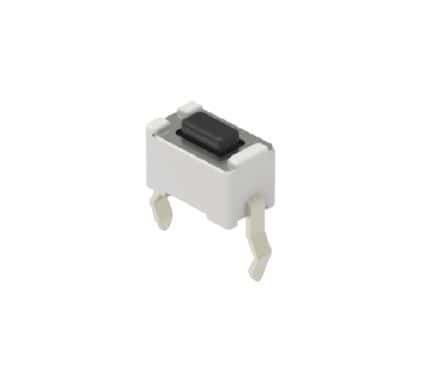

SPST tactile switch featuring a rectangular black button with a 0.8mm actuator length. Rated for 0.05A at 12VDC, this through-hole component offers an operating force of 0.98N and an electrical life of 50,000 cycles. Designed for straight orientation with PC pin termination, it operates within a temperature range of -20°C to 90°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alps Electric SKHLAAA010 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Color | Black |
| Actuator Length | 0.8mm |
| Color | Black |
| Current Rating | 50mA |
| Depth | 3.5mm |
| Electrical Life | 50000Cycles |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 12V |
| Mount | Through Hole |
| Operating Force | 0.98N |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SKHL |
| Switch Function | OFF-(ON) |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 12V |
| RoHS | Compliant |
