Surface mount tactile switch featuring a 3.2mm length, 4.6mm depth, and 2.5mm height with a 0.7mm natural actuator. This SPST switch offers a 160gf (1.57N) operating force, 50mA current rating, and 16V DC voltage rating. With a silver contact plating and an electrical life of 100,000 cycles, it operates within a -20°C to 85°C temperature range. Packaged on tape and reel, this lead-free and RoHS compliant component is designed for surface mount applications.
PackageSMD/SMT
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Alps Electric SKRPABE010 technical specifications.
General
| Actuator Color | Natural |
| Actuator Length | 0.7mm |
| Package/Case | SMD/SMT |
| Color | Clear |
| Contact Plating | Silver |
| Current Rating | 50mA |
| Depth | 4.6mm |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 16V |
| Mount | Surface Mount |
| Operating Force | 1.57N |
| Orientation | Straight |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SKRP |
| Termination | J-Bend |
| Throw Configuration | SPST |
| DC Rated Voltage | 16V |
Compliance
| RoHS | Compliant |
Datasheet
Alps Electric SKRPABE010 Datasheet
Download the complete datasheet for Alps Electric SKRPABE010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

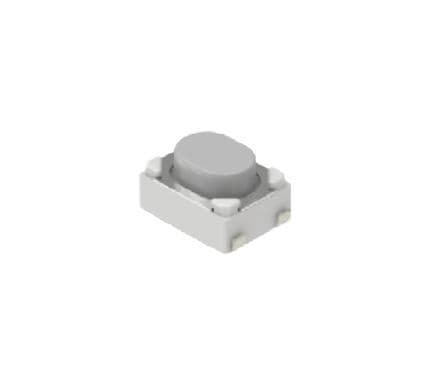

Product Images
