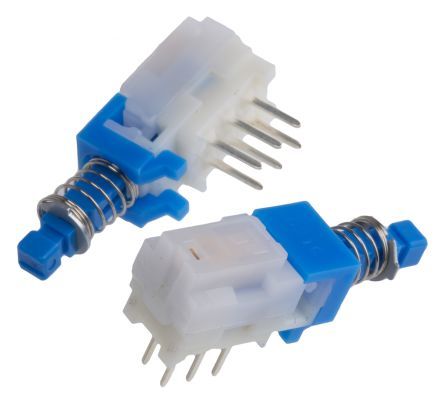

DPDT illuminated pushbutton switch featuring PC pin termination for through-hole mounting. Offers alternate contact action with a 100mA current rating at 30VDC. This right-angle mounted switch has a 3mm plunger actuator, 1.5N operating force, and a mechanical/electrical life of 10,000 cycles. Operating temperature range is -10°C to 60°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Alps Electric SPUJ190900 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 3mm |
| Actuator Type | PLUNGER |
| Contact Current Rating | 100mA |
| Current Rating | 100mA |
| Depth | 25mm |
| Electrical Life | 10000Cycles |
| Illumination Type | Illuminated |
| Length | 7.4mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 60°C |
| Max Voltage Rating (DC) | 30V |
| Mechanical Life | 10000Cycles |
| Min Operating Temperature | -10°C |
| Mount | PCB, Through Hole |
| Operating Force | 1.5N |
| Orientation | Right Angle |
| Package Quantity | 400 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SPUJ |
| Termination | PC Pins |
| Throw Configuration | DPDT, DP |
| DC Rated Voltage | 30V |
| RoHS | Compliant |
