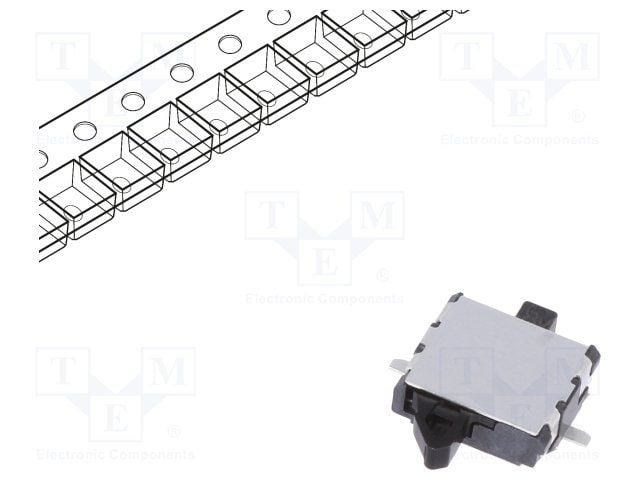

DETECT SWITCH, SPST-NO, 0.05A, 20V, SMD; Available until stocks are exhausted
Alps Electric SPVT110102 technical specifications.
| Actuator Length | 2.15mm |
| Body Depth | 6.5mm |
| Body Height | 1.9mm |
| Body Length | 5.6mm |
| Direction | RIGHT |
| Electrical Life | 100000Cycles |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 20V |
| Mechanical Life | 100000Cycles |
| Mount | Surface Mount |
| Operating Force | 0.4N |
| Orientation | Right Angle |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| RoHS | Compliant |
No datasheet is available for this part.
