Technical Specifications
Altech 1C6UR technical specifications.
General
Actuator Type
Lever
Approvals
UL
Breaker Type
Thermal Magnetic
Current Rating
6A
Depth
74.4mm
Length
17.5mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Number of Poles
1
Package Quantity
12
RoHS Compliant
No
Series
UR
Termination
CLAMP
Voltage Rating (AC)
277V
Width
89.3mm
Compliance
RoHS
Not Compliant
Datasheet
Altech 1C6UR Datasheet
Download the complete datasheet for Altech 1C6UR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

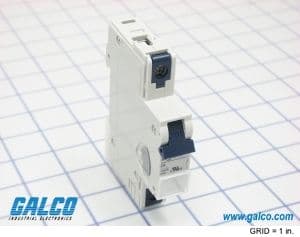

Product Images
