Multilayer Ceramic Capacitor (MLCC) with 0.3pF capacitance and 250V DC rating. Features C0G dielectric for stable performance across a wide temperature range (-55°C to 125°C). Housed in an 0805 (2012 metric) surface-mount package with dimensions of 2.01mm length, 1.24mm depth, and 1.3mm height. Offers ultra-low ESR and is supplied on tape and reel for automated assembly. RoHS compliant.
Package0805
Capacitance0.3pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600F0R3AT250XT technical specifications.
General
Capacitance
0.3pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Depth
1.24mm
Dielectric
C0G
Height
1.3mm
Length
2.01mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ATC 600F
Termination
SMD/SMT
Thickness
0.051inch
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
American Technical Ceramics 600F0R3AT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600F0R3AT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

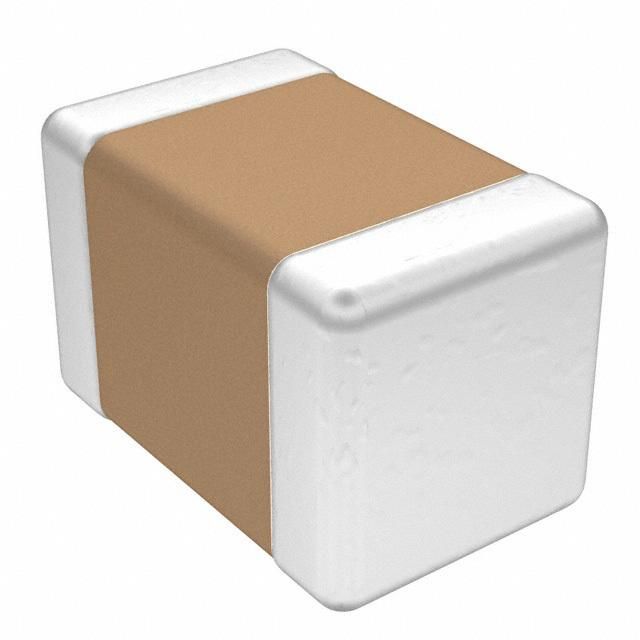

Product Images
