American Technical Ceramics
600F181FT250XT
180pF C0G Multilayer Ceramic Capacitor, 250V, 1% Tolerance, 0805 Package
The 600F181FT250XT is a 180pF multilayer ceramic capacitor from American Technical Ceramics. It features a C0G dielectric and a 1% tolerance. The capacitor has a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. It is available in a 0805 package and is RoHS compliant.
Package0805
Capacitance180pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600F181FT250XT technical specifications.
General
| Capacitance | 180pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Dielectric | C0G |
| Height | 1.3mm |
| Length | 2.01mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ATC 600F |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 1.24mm |
Compliance
| RoHS | Compliant |
Datasheet
American Technical Ceramics 600F181FT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600F181FT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

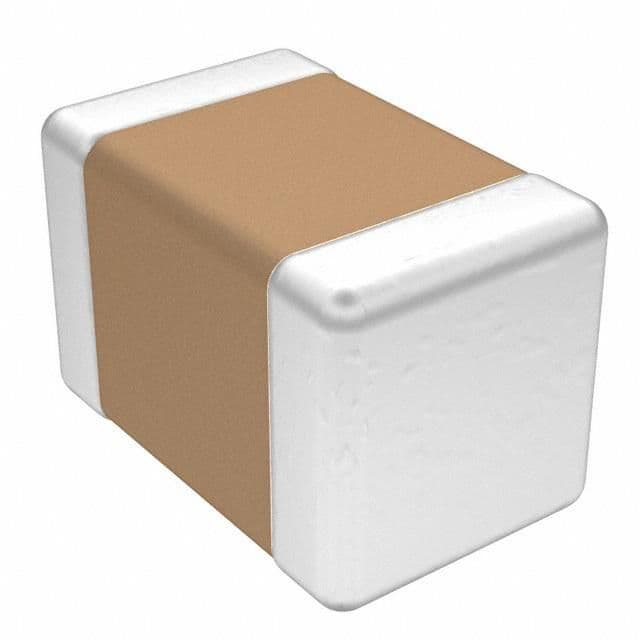

Product Images
