Multilayer Ceramic Capacitor (MLCC) with 220pF capacitance and 250V voltage rating. Features C0G dielectric, 5% tolerance, and an 0805 surface mount package. Operates from -55°C to 125°C with ultra-low ESR. Packaged in tape and reel for automated assembly. RoHS compliant.
Package0805
Capacitance220pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600F221JT250XT technical specifications.
General
Capacitance
220pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Dielectric
C0G
Height
1.3mm
Length
0.079inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
ATC 600F
Termination
SMD/SMT
Thickness
0.051inch
Tolerance
5%
Voltage Rating
250V
DC Rated Voltage
250V
Weight
0.000194oz
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
American Technical Ceramics 600F221JT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600F221JT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

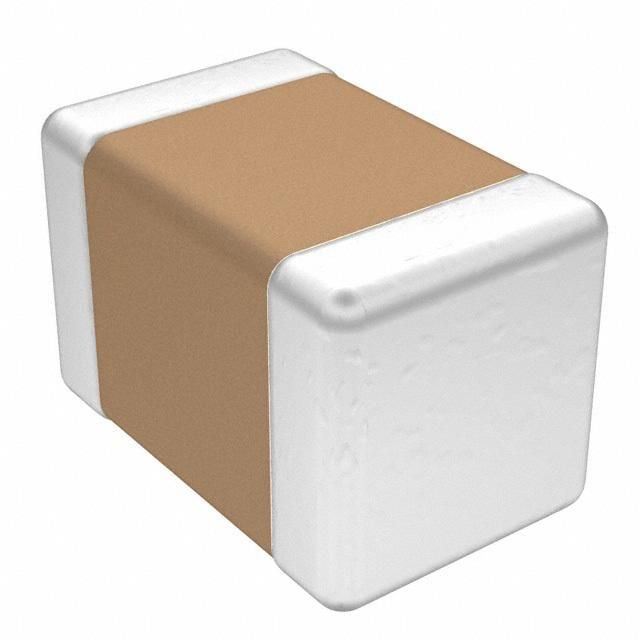

Product Images
