Multilayer Ceramic Capacitor (MLCC) with 100pF capacitance and 250V DC rating. Features C0G dielectric for excellent stability and a tight 2% tolerance. Packaged in a 0603 (1608 metric) surface-mount case with ultra-low ESR, operating from -55°C to 125°C. Supplied on tape and reel for automated assembly.
Package0603
Capacitance100pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600S101GT250XT technical specifications.
General
| Capacitance | 100pF |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Dielectric | C0G |
| Height | 0.89mm |
| Length | 0.063inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | ATC 600S |
| Termination | SMD/SMT |
| Thickness | 0.035inch |
| Tolerance | 2% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.000222oz |
| Width | 0.032inch |
Compliance
| RoHS | Compliant |
Datasheet
American Technical Ceramics 600S101GT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600S101GT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

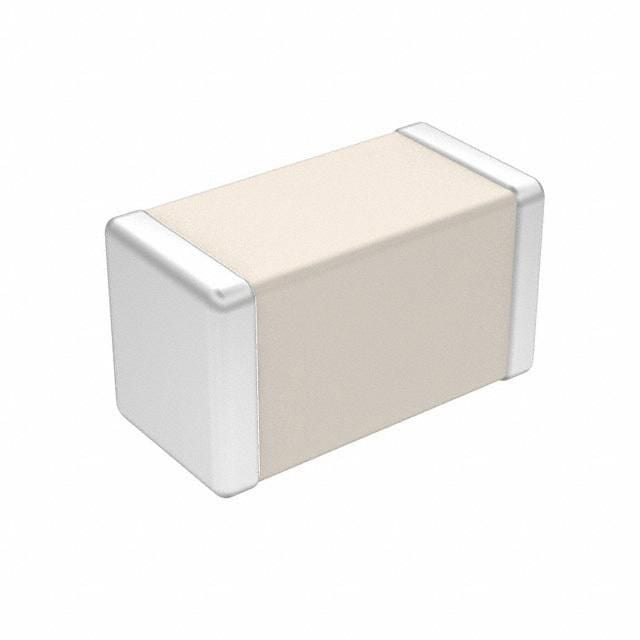

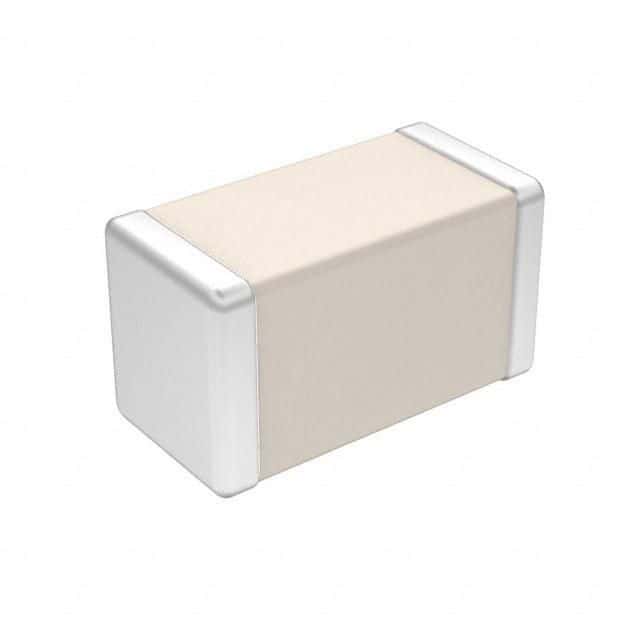

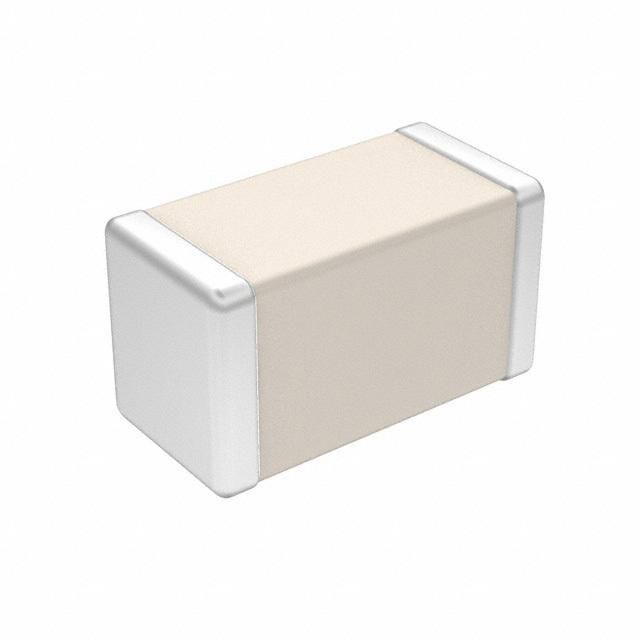

Product Images
