Multilayer Ceramic Capacitor (MLCC) with 5.6pF capacitance and 250V DC rating. Features C0G dielectric for excellent stability and ultra-low ESR. Packaged in an 0603 (1608 metric) surface-mount case with SMD/SMT termination, operating from -55°C to 125°C. Supplied on tape and reel.
Package0603
Capacitance5.6pF
Voltage Rating250V
MountingSurface Mount
Quick Jump:
Technical Specifications
American Technical Ceramics 600S5R6BT250XT technical specifications.
General
Capacitance
5.6pF
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Depth
0.81mm
Dielectric
C0G
Height
0.89mm
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
ATC 600S
Termination
SMD/SMT
Thickness
0.035inch
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.032inch
Compliance
RoHS
Compliant
Datasheet
American Technical Ceramics 600S5R6BT250XT Datasheet
Download the complete datasheet for American Technical Ceramics 600S5R6BT250XT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

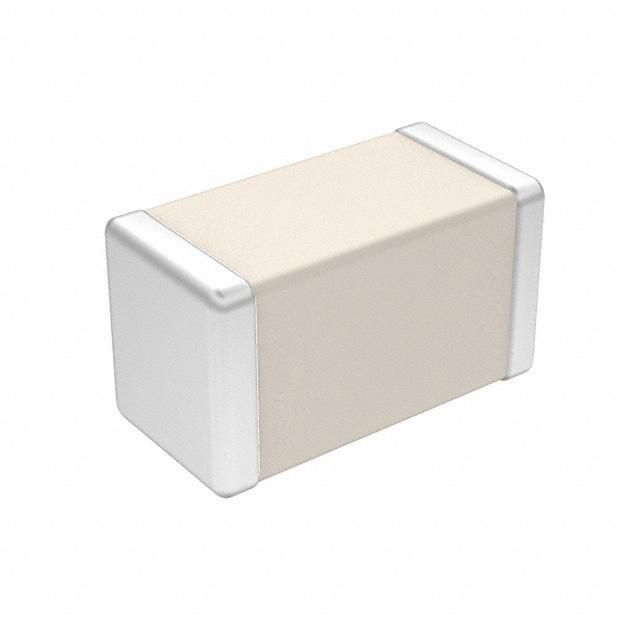

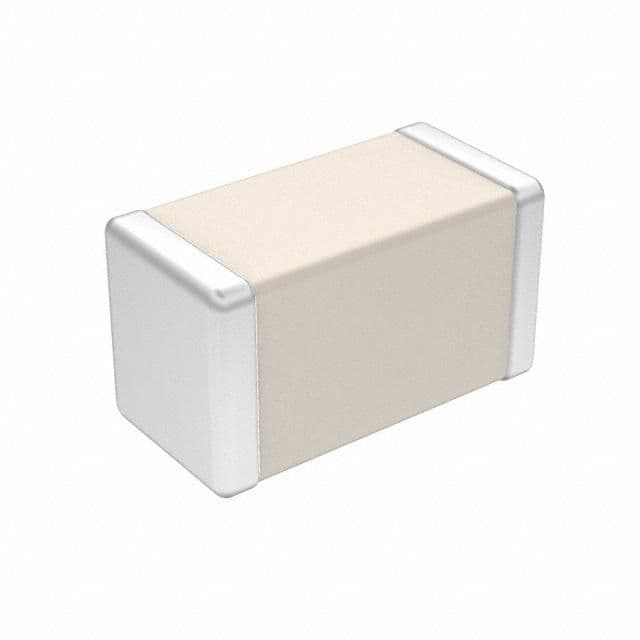

Product Images
