Technical Specifications
Amperite 24DSWRDC-DIN technical specifications.
General
| Coil Voltage (DC) | 24V |
| Contact Material | Gold, Silver |
| Load Current | 8A |
| Max Current Rating | 8A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | DIN Rail |
| Output Current | 8A |
| Termination | Screw |
| Throw Configuration | SPDT |
| Weight | 72g |
Compliance
| RoHS | Not Compliant |
Datasheet
Amperite 24DSWRDC-DIN Datasheet
Download the complete datasheet for Amperite 24DSWRDC-DIN to view detailed technical specifications.
No datasheet is available for this part.

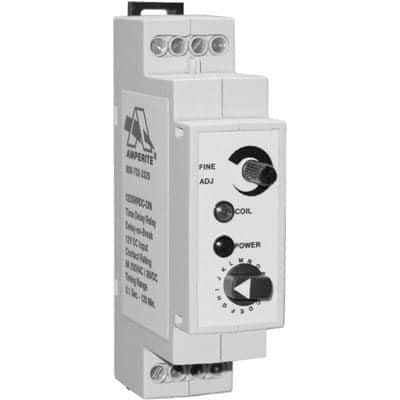

Product Images
