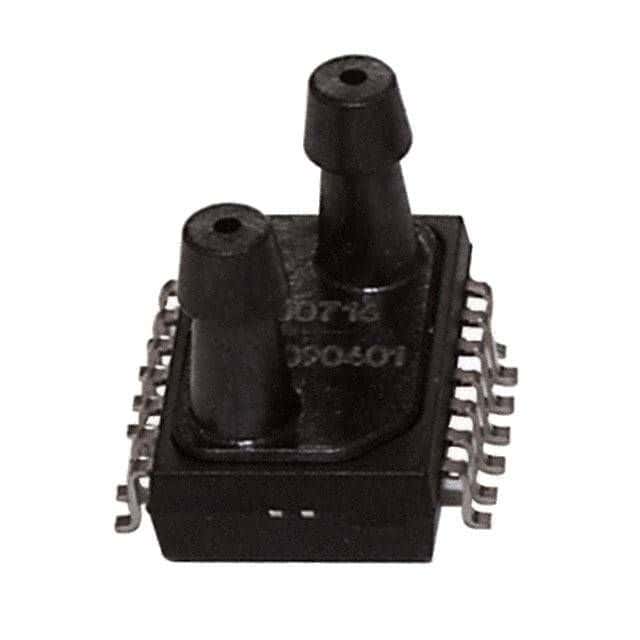

Differential pressure sensor with I2C digital interface, offering 1.5% accuracy and 14-bit resolution. Features a rectangular SOIC package for surface mounting, operating from 2.7V to 5.5V with a typical 5V supply. This RoHS compliant component handles a maximum pressure of 60PSI, with a specified operating pressure of 15PSI and a temperature range of -40°C to 125°C. The 5kR impedance and 1mA supply current are suitable for various environmental sensing applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol NPA-700B-015D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1.5% |
| Package/Case | SOIC |
| Impedance | 5kR |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 60PSI |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Operating Pressure | 15PSI |
| Operating Supply Voltage | 5V |
| Output Type | I2C, Digital |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Cut Tape |
| Port Style | Barbed |
| Pressure Type | Differential |
| Reach SVHC Compliant | Unknown |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Series | NPA-700 |
| Supply Current | 1mA |
| Termination | Gull Wing |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| RoHS | Compliant |
Download the complete datasheet for Amphenol NPA-700B-015D to view detailed technical specifications.
