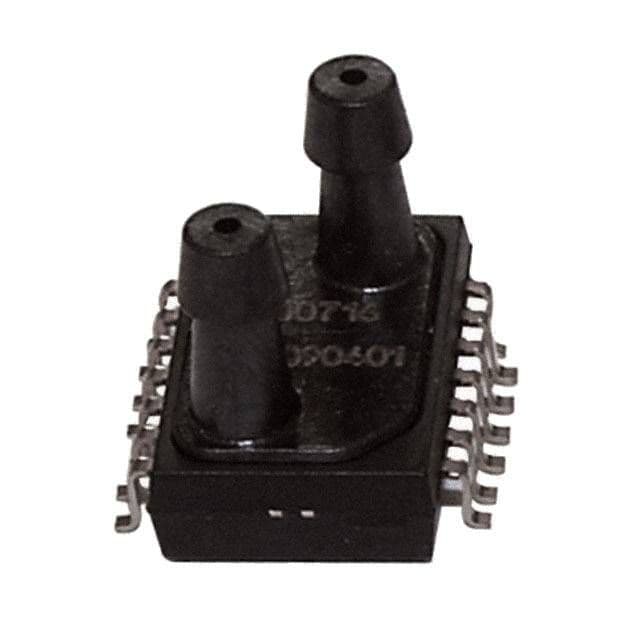

Differential pressure sensor with 14-bit resolution, offering 1.5% accuracy. Features an I2C digital interface and operates within a 2.7V to 5.5V supply voltage range, with a typical 5V operating voltage. This sensor is designed for differential pressure measurements up to 35 PSI, with a 10" H2O operating pressure range. Packaged in a 14-lead SOIC with gull wing termination, it is RoHS compliant and operates from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol NPA-700B-10WD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 1.5% |
| Package/Case | SOIC |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 35PSI |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Operating Pressure | 0.36PSI |
| Operating Supply Voltage | 5V |
| Output Type | I2C, Digital |
| Output Voltage | 5V |
| Package Quantity | 100 |
| Packaging | Cut Tape |
| Port Style | Barbed |
| Pressure Type | Differential |
| Reach SVHC Compliant | Unknown |
| Resolution | 14b |
| RoHS Compliant | Yes |
| Series | NPA-700 |
| Supply Current | 1.5mA |
| Termination | Gull Wing |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| RoHS | Compliant |
