The AS1351 is a dual adjustable regulator IC from AMS, featuring two outputs with a maximum current of 200mA. It operates from a supply voltage of 3V to 5.5V and has a dropout voltage of 200mV. The device is packaged in QFN and is lead-free. It can withstand operating temperatures ranging from -40°C to 85°C and has a low operating supply current of 125uA. The AS1351 also offers a power supply rejection ratio of 70dB.
PackageQFN
Quick Jump:
Technical Specifications
AMS AS1351 technical specifications.
General
| Package/Case | QFN |
| Dropout Voltage | 200mV |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 3V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 2 |
| Number of Regulators | 2 |
| Operating Supply Current | 125uA |
| Output Current | 200mA |
| Output Type | Adjustable |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 70dB |
| Weight | 0.000776oz |
Compliance
| RoHS | Not Compliant |
Datasheet
AMS AS1351 Datasheet
Download the complete datasheet for AMS AS1351 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

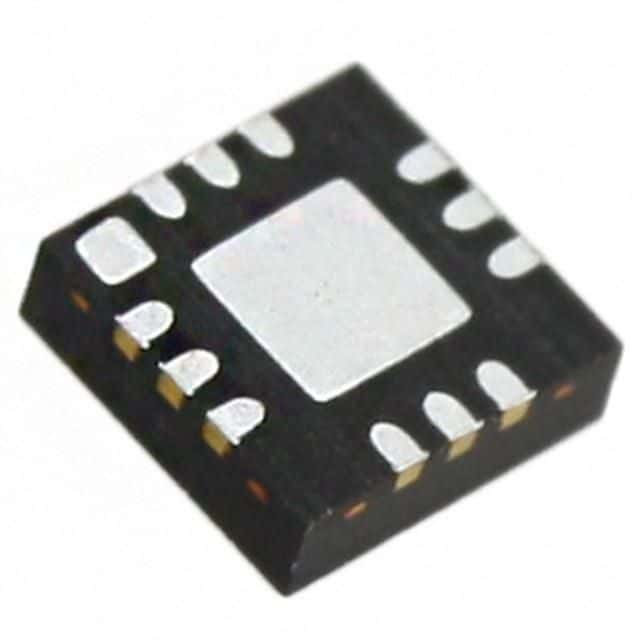

Product Images
