PackageSOT-23-5
Current Rating150mA
Quick Jump:
Technical Specifications
AMS AS13985H33-T technical specifications.
General
Package/Case
SOT-23-5
Current Rating
150mA
Dropout Voltage
45mV
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
250uA
Nominal Output Voltage
3.3V
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Packaging
Cut Tape
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
130uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Tolerance
1%
Compliance
RoHS
Not Compliant
Datasheet
AMS AS13985H33-T Datasheet
Download the complete datasheet for AMS AS13985H33-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

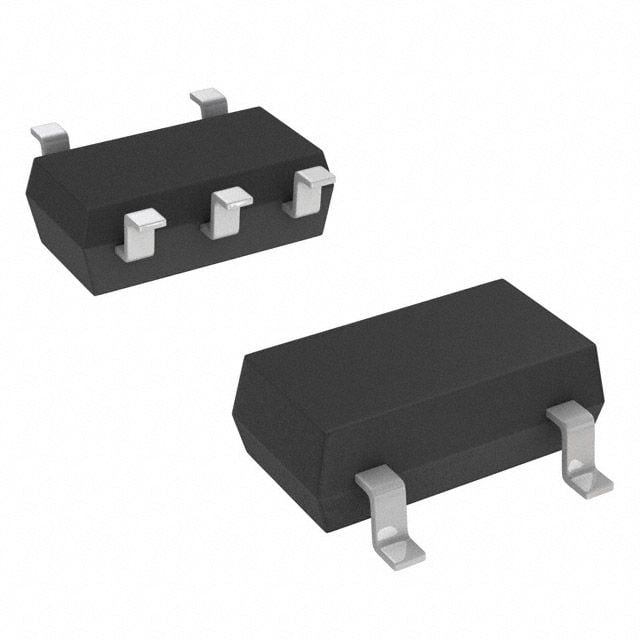

Product Images
