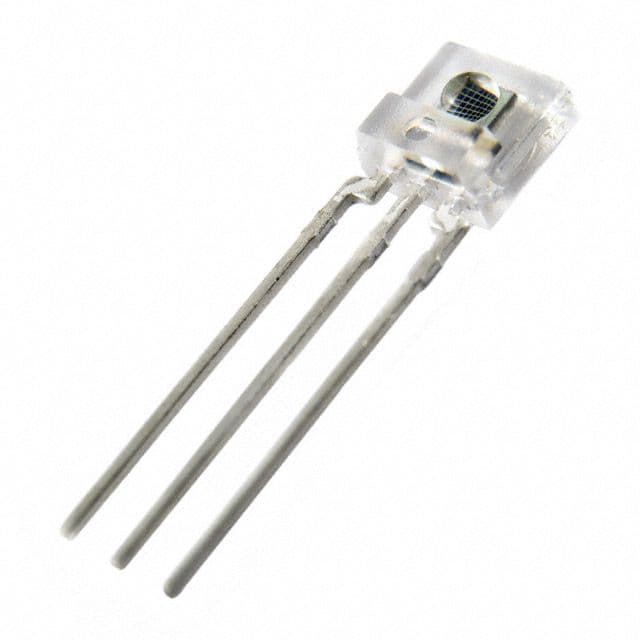

The TSL235R-LF optical proximity sensor from AMS is a compact, plastic package device with a wavelength of 635nm. It operates within a temperature range of -25°C to 70°C and is compliant with RoHS regulations. The sensor has a maximum supply voltage of 5.5V and a minimum supply voltage of 2.7V, with an output current of 4mA. It is available in a bulk packaging option and is not compliant with Reach SVHC regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the AMS TSL235R-LF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | S |
| Lead Free | Lead Free |
| Lead Length | 14.8mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Output Current | 4mA |
| Output Type | Frequency |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 635nm |
| RoHS | Compliant |
