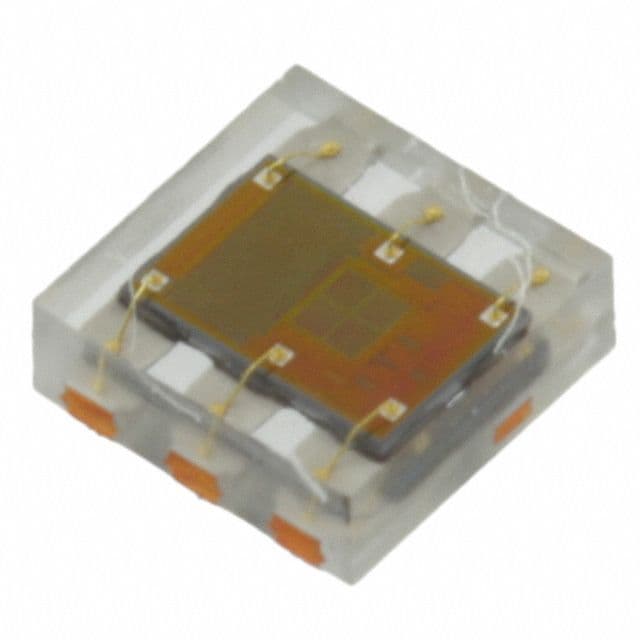

The TSL2561FN is a 16-bit digital light sensor from AMS, operating on a 3V supply with a maximum current of 15uA. It features an I2C interface and is packaged in a DFN package. The device is RoHS compliant and has a maximum operating temperature of 70°C. It can operate at a maximum frequency of 780kHz and has a resolution of 16 bits.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the AMS TSL2561FN datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Data Bus Width | 20b |
| Interface | I2C |
| Lead Free | Lead Free |
| Max Frequency | 780kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Operating Supply Current | 15uA |
| Operating Supply Voltage | 3V |
| Output Type | I2C |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Power Dissipation | 750uW |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Wavelength | 640nm |
| RoHS | Compliant |
