Technical Specifications
AMS TSL2561T technical specifications.
General
| Package/Case | T |
| Data Bus Width | 16b |
| Fall Time | 300ns |
| Height | 1.398mm |
| Interface | I2C |
| Lead Free | Lead Free |
| Length | 1.25mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Operating Supply Current | 600uA |
| Operating Supply Voltage | 3V |
| Output Current | 6mA |
| Output Type | I2C |
| Packaging | Tape and Reel |
| Power Dissipation | 750uW |
| Reach SVHC Compliant | No |
| Resolution | 16b |
| RoHS Compliant | Yes |
| Wavelength | 640nm |
| Width | 0.4mm |
Compliance
| RoHS | Compliant |
Datasheet
AMS TSL2561T Datasheet
Download the complete datasheet for AMS TSL2561T to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

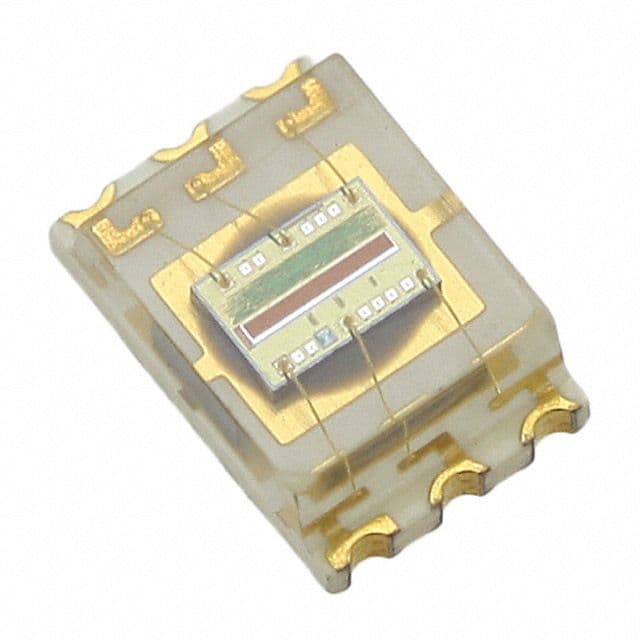

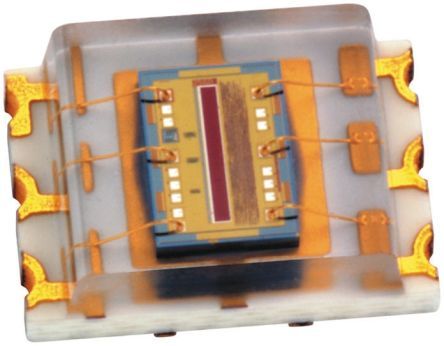

Product Images
