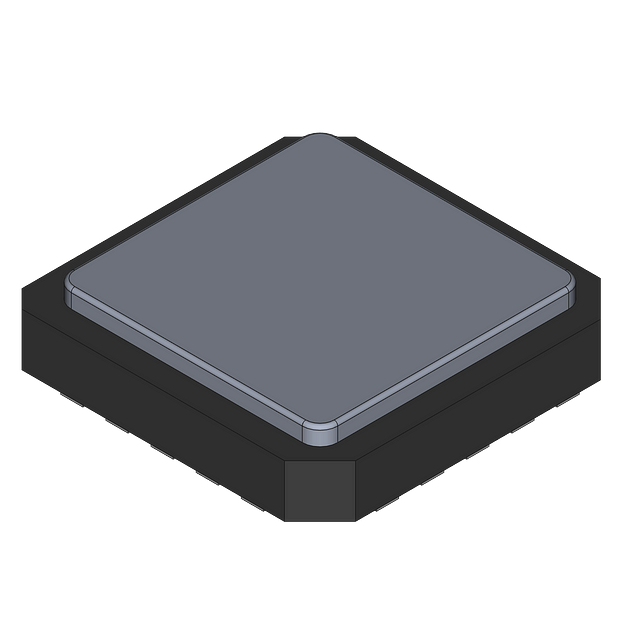

8-Bit CMOS Analog-to-Digital Converter (ADC) featuring a 1 MSPS sampling rate and 45dB Signal-to-Noise Ratio (SNR). This single-channel, single-ended input ADC offers a full-scale error of 1 LSB and operates with a dual supply voltage of 5V, ranging from 4.75V to 5.25V. The component is housed in an LCC package with Tin/Lead contact plating and supports both bipolar and unipolar polarity. Maximum power dissipation is 100.5mW, with typical power consumption at 50mW. Operating temperature range spans from -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices 5962-89518012A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LCC |
| Contact Plating | Tin, Lead |
| Dual Supply Voltage | 5V |
| Full Scale Error | 1LSB |
| Input Type | SINGLE-ENDED |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 5.25V |
| Min Dual Supply Voltage | 4.75V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100.5mW |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 1 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 54 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 50mW |
| Power Dissipation | 50mW |
| Resolution | 8b |
| RoHS Compliant | No |
| Sampling Rate | 1000000S/s |
| Series | AD7821 |
| Signal to Noise Ratio (SNR) | 45dB |
| Supply Type | Single, Dual |
| RoHS | Not Compliant |
