High-speed, low-noise operational amplifier featuring a 600MHz bandwidth and 230V/µs slew rate. This single-channel amplifier offers a 1.7nV/sqrt Hz input voltage noise density and 3.3uA input bias current. Operating from a dual supply voltage range of 4.5V to 18V, it provides 100dB common mode rejection ratio and 98dB power supply rejection ratio. The component is housed in an LCC package with gold contact plating and operates across a wide temperature range of -55°C to 125°C.
PackageLCC
Power800mW
Quick Jump:
Technical Specifications
Analog Devices 5962-9312901M2A technical specifications.
General
| Bandwidth | 600MHz |
| Package/Case | LCC |
| Common Mode Rejection Ratio | 100dB |
| Contact Plating | Gold |
| Gain Bandwidth Product | 600MHz |
| Input Bias Current | 3.3uA |
| Input Offset Voltage (Vos) | 200uV |
| Input Type | NO |
| Input Voltage Noise Density | 1.7nV/sqrt Hz |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 4.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 800mW |
| Max Supply Voltage | 18V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 15V |
| Package Quantity | 54 |
| Packaging | Rail/Tube |
| Power Dissipation | 800mW |
| Power Supply Rejection Ratio (PSRR) | 98dB |
| Quiescent Current | 6.5mA |
| RoHS Compliant | No |
| Series | AD829 |
| Slew Rate | 230V/µs |
| Supply Type | Dual |
| Unity Gain Bandwidth Product | 600MHz |
| Voltage Gain | 96.26dB |
Compliance
| RoHS | Not Compliant |
Datasheet
Analog Devices 5962-9312901M2A Datasheet
Download the complete datasheet for Analog Devices 5962-9312901M2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

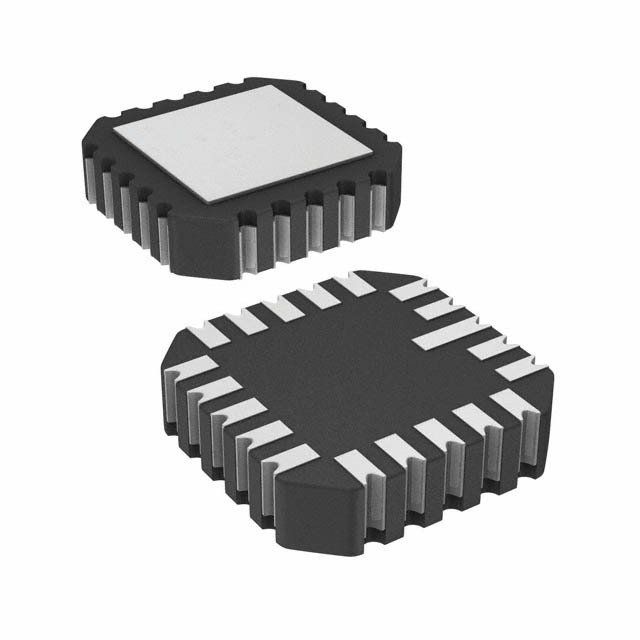

Product Images
