12-bit, 100 kSPS complete Analog-to-Digital Converter (ADC) featuring a parallel interface. Offers 1 LSB integral nonlinearity and supports both bipolar and unipolar input polarity. Operates with dual supply voltages from 11.4V to 16.5V, with a maximum power dissipation of 575mW. Designed for through-hole mounting, this component functions across a wide temperature range of -55°C to 125°C.
MountingThrough Hole
PolarityBipolar, Unipolar
Power385mW
Quick Jump:
Technical Specifications
Analog Devices 5962-9316401MXA technical specifications.
General
| Contact Plating | Tin, Lead |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 1LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 16.5V |
| Min Dual Supply Voltage | 11.4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 575mW |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Elements | 1 |
| Package Quantity | 13 |
| Packaging | Rail/Tube |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 385mW |
| Power Dissipation | 385mW |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 100KS/s |
| Series | AD1674 |
| Supply Type | Dual |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Analog Devices 5962-9316401MXA Datasheet
Download the complete datasheet for Analog Devices 5962-9316401MXA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

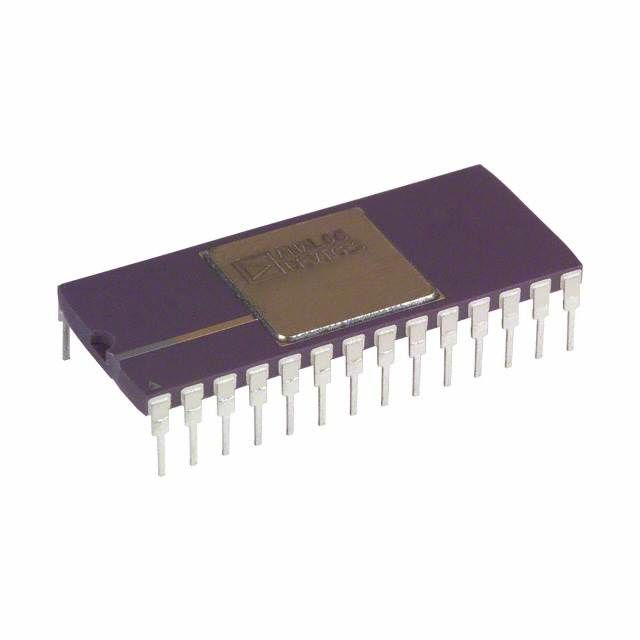

Product Images
