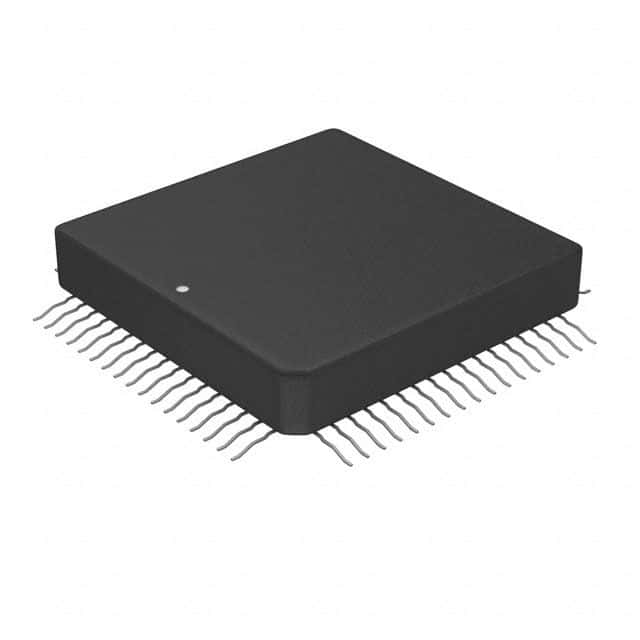

Dual channel, 12-bit analog-to-digital converter (ADC) featuring a 40 MSPS sampling rate. Offers a 68dB signal-to-noise ratio and a bipolar input type. Integral nonlinearity is 0.5 LSB, with differential nonlinearity at 1.25 LSB. Operates on a dual 5V supply voltage and utilizes a parallel interface. Housed in a CLCC package with tin/lead contact plating, this component supports a temperature range of -55°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD10242TZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD10242TZ technical specifications.
| Package/Case | CLCC |
| Contact Plating | Tin, Lead |
| Differential Nonlinearity | 1.25LSB |
| Dual Supply Voltage | 5V |
| Input Capacitance | 4pF |
| Input Type | SINGLE-ENDED |
| Integral Nonlinearity (INL) | 0.5LSB |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 2W |
| Number of A/D Converters | 2 |
| Number of Analog Inputs | 6 |
| Number of Bits | 12 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Number of Elements | 2 |
| Number of Inputs | 6 |
| Package Quantity | 1 |
| Packaging | Tray |
| Polarity | Bipolar |
| Power Consumption | 1.75W |
| Power Dissipation | 2W |
| Radiation Hardening | No |
| Resolution | 12b |
| RoHS Compliant | No |
| Sampling Rate | 40MS/s |
| Signal to Noise Ratio (SNR) | 68dB |
| Supply Type | Dual |
| RoHS | Not CompliantNo |
