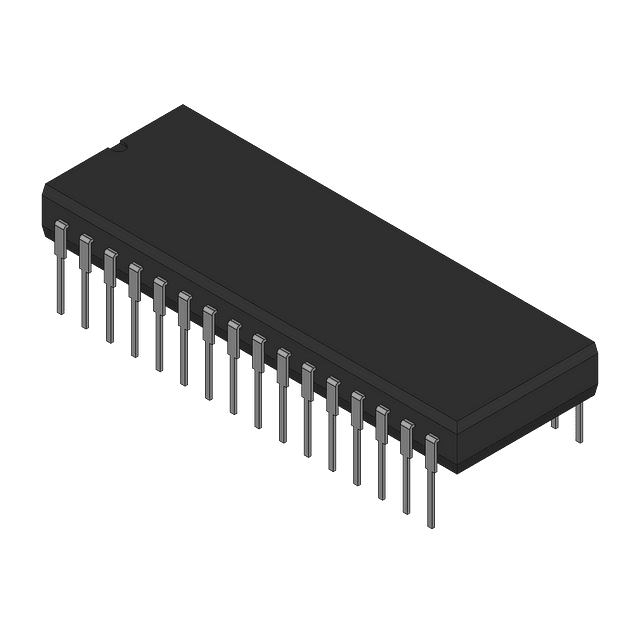

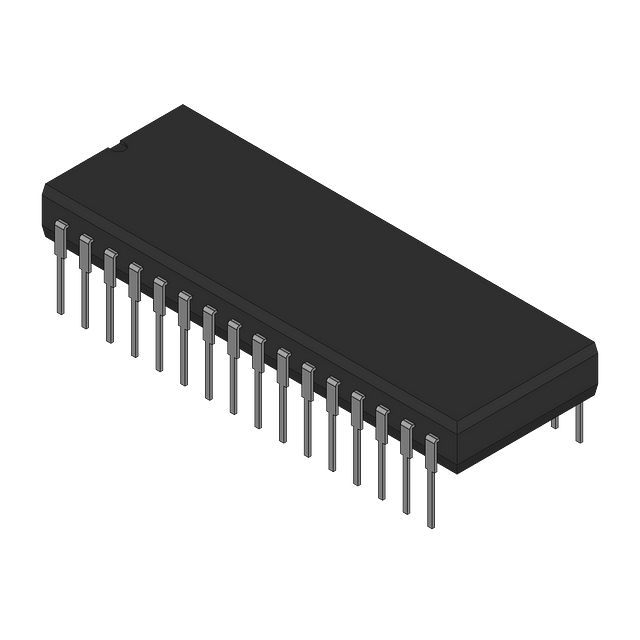

16-bit, 2-channel successive approximation analog-to-digital converter (ADC) with parallel interface. Features a bipolar/unipolar input type and a sampling rate of 50 kS/s. Operates with a dual supply voltage range of ±14.5V to ±15.5V. Housed in a hermetically sealed, ceramic DIP-32 package with gold contact plating, suitable for through-hole mounting. Maximum power dissipation is 900mW, with an operating temperature range of -25°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD1380KD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Contact Plating | Gold |
| Dual Supply Voltage | 15V |
| Input Type | SINGLE-ENDED |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15.5V |
| Min Dual Supply Voltage | 14.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 900mW |
| Mount | Through Hole |
| Number of A/D Converters | 1 |
| Number of Analog Inputs | 2 |
| Number of Bits | 16 |
| Number of Channels | 1 |
| Number of Converters | 1 |
| Number of Inputs | 16 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Polarity | Bipolar, Unipolar |
| Power Consumption | 900mW |
| Power Dissipation | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resolution | 16b |
| RoHS Compliant | No |
| Sampling Rate | 50KS/s |
| Supply Type | Dual |
| RoHS | Not CompliantNo |
