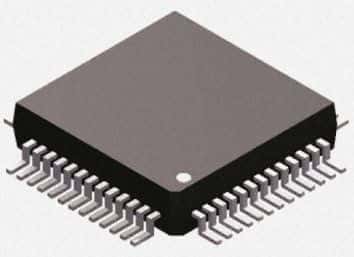

Multichannel 96 kHz Codec featuring 24-bit resolution and a 105dB Signal to Noise Ratio. This general-purpose IC supports SPI, 4-wire serial interface and includes 2 A/D converters and 3 D/A converters. Operating from a 3V to 5.25V supply, it is housed in a 10mm x 10mm x 2mm QFP package with tin, matte contact plating, suitable for surface mounting. The component operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Analog Devices AD1836AASZ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Analog Devices AD1836AASZ technical specifications.
| Package/Case | QFP |
| Contact Plating | Tin, Matte |
| Height | 2mm |
| Interface | SPI, 4-WIRE, Serial |
| Lead Free | Contains Lead |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of Bits | 24 |
| Number of D/A Converters | 3 |
| Package Quantity | 96 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Sampling Rate | 96KS/s |
| Signal to Noise Ratio (SNR) | 105dB |
| Supply Current | 78mA |
| Type | General Purpose |
| Width | 10mm |
| RoHS | Compliant |
