Miniature isolation amplifier featuring 1.5kV isolation voltage and 130dB common mode rejection ratio. This single-channel, through-hole component offers a 5kHz bandwidth and 40dB voltage gain, powered directly from a +15V DC supply. Key specifications include 30pA input bias current, 5mV input offset voltage, and 2GR input resistance. Packaged in PDIP, it operates across a -40°C to 85°C temperature range.
PackagePDIP
Current35mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Analog Devices AD202KN technical specifications.
General
Amplifier Type
ISOLATION
Bandwidth
5kHz
Package/Case
PDIP
Common Mode Rejection Ratio
130dB
Contact Plating
Tin, Lead
Gain Bandwidth Product
2kHz
Height
8.52mm
Input Bias Current
30pA
Input Offset Voltage (Vos)
5mV
Input Resistance
2GR
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Length
53.3mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
16.5V
Min Supply Voltage
13.5V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
2
Number of Elements
1
Operating Supply Current
5mA
Operating Supply Voltage
15V
Output Current per Channel
400uA
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Supply Current
35mA
Voltage Gain
40dB
Width
17.8mm
Compliance
RoHS
Not CompliantNo
Datasheet
Analog Devices AD202KN Datasheet
Download the complete datasheet for Analog Devices AD202KN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

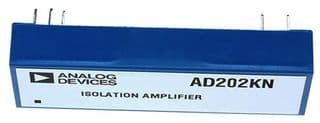

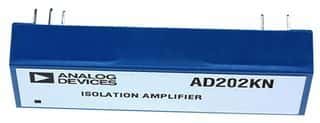

Product Images
