Miniature isolation amplifier featuring a 2kHz bandwidth and 40dB voltage gain. This single-channel, dual-circuit IC offers 1.5kV isolation voltage and a high 130dB common mode rejection ratio. Designed for through-hole mounting in a SIP package, it operates from a +15V DC supply with a maximum supply voltage of 16.5V and a low 5mA supply current. Key specifications include 30pA input bias current, 5mV input offset voltage, and 2GR input resistance.
PackageSIP
Current5mA
MountingThrough Hole
Quick Jump:
Technical Specifications

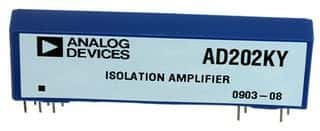

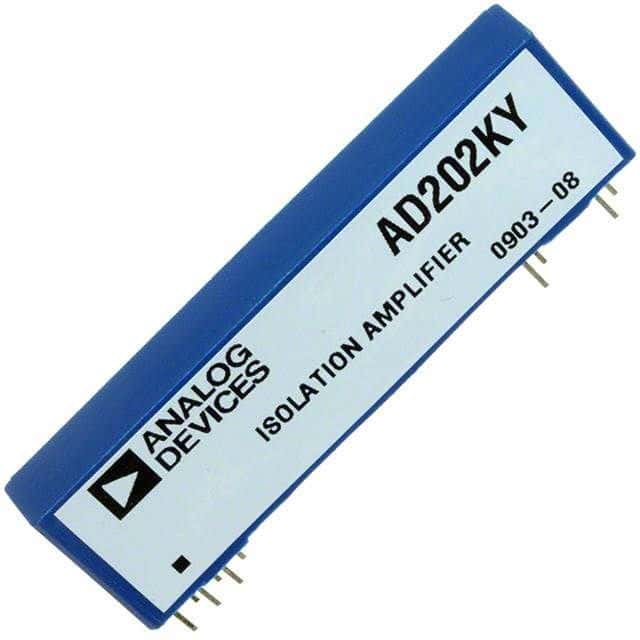

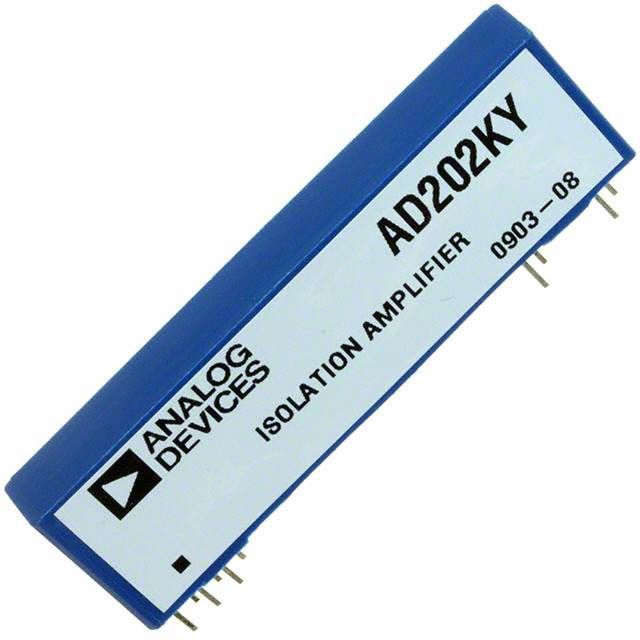

Analog Devices AD202KY technical specifications.
General
Amplifier Type
ISOLATION
Bandwidth
2kHz
Package/Case
SIP
Common Mode Rejection Ratio
130dB
Gain Bandwidth Product
2kHz
Height
15.9mm
Input Bias Current
30pA
Input Offset Voltage (Vos)
5mV
Input Resistance
2GR
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Length
52.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
5mA
Max Supply Voltage
16.5V
Min Supply Voltage
13.5V
Mount
Through Hole
Number of Amplifiers
1
Number of Channels
4
Number of Circuits
2
Number of Elements
1
Operating Supply Current
5mA
Operating Supply Voltage
15V
Output Current per Channel
400uA
Package Quantity
1
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
No
Supply Current
5mA
Voltage Gain
40dB
Width
6.6mm
Compliance
RoHS
Not Compliant
Datasheet
Analog Devices AD202KY Datasheet
Download the complete datasheet for Analog Devices AD202KY to view detailed technical specifications.
